ROBAN - Helical Main Gear Set

Heavy duty helical main gear set specifically for the ROBAN 700/800 class mechanics.

Precision machined optimised mesh helical gears that deliver super smooth, efficient power delivery with reduced noise & vibration.



Limited edition BLACK

A direct replacement for the stock plastic unit, this all metal CNC machined tail rotor case will accept stock drive components or Quick upgrade parts.

Fitted with high quality output shaft ballraces for long life and smooth drive.

ROBAN Servo Disc Set

Heavy duty machined alloy servo disc set specifically for the ROBAN 700/800 class mechanics.

20mm diameter with multiple M2 fixing holes at 8mm from centre to provide ideal geometry.

Pack of 3 (JR / Spektrum fitting)

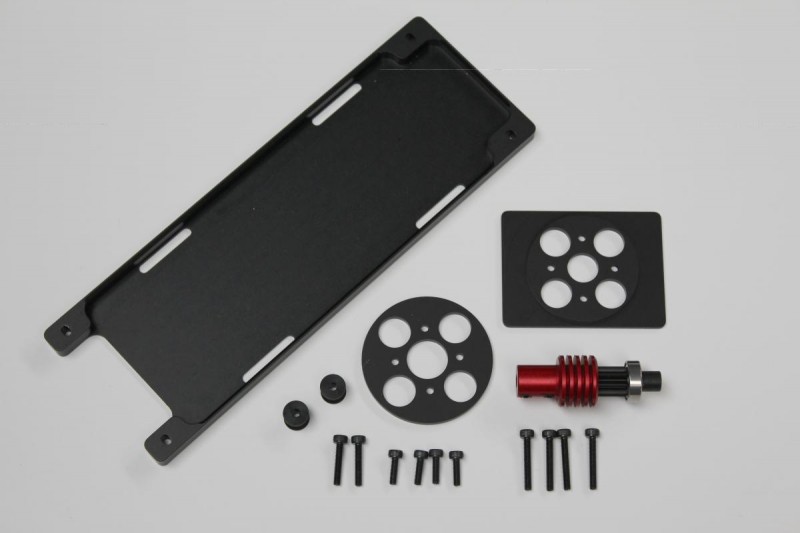

RAPTOR 30/50 V2 - Electric Conversion Kit

This set of parts allows the Raptor 30 V2 to be converted from Nitro to Brushless electric power and includes a heavy duty machined alloy battery base plate, motor mounting plates, heatsink pinion carrier, pinion & ballrace, canopy latch spacers and fixing hardware.

The kit is easy to install with no further modifications to the standard Raptor frame set being required. The baseplate fits between the frame and the undercarriage and provides a protective location for the battery and allows for an optimal CG position. The motor mounting plates simply fit above and bellow the fan duct and the heat-sink pinion carrier effectively draws heat from the motor out through the shaft to aid cool running.

If fitting to the Raptor 50 or Raptor Titan it will be necessary to fit the 86 tooth main gear from the Raptor 30 to maintain the correct gear ratio for the 890kv motor.

The kit is designed to be used with the Scorpion HKIII-4020-890kv brushless motor (other motors may be suitable) and a 5000mah 6S LiPo battery. A suitable ESC such as the Castle Creations Talon 90 is also required.
